4-Channel 360-degree Around View Truck Blind Spot Monitoring System
4-Channel 360-degree Around View Truck Blind Spot Monitoring System
4-Channel 360-degree Around View Truck Blind Spot Monitoring System
4-Channel 360-degree Around View Truck Blind Spot Monitoring System
4-Channel 360-degree Around View Truck Blind Spot Monitoring System
4-Channel 360-degree Around View Truck Blind Spot Monitoring System
4-Channel 360-degree Around View Truck Blind Spot Monitoring System
4-Channel 360-degree Around View Truck Blind Spot Monitoring System
4-Channel 360-degree Around View Truck Blind Spot Monitoring System

4-Channel 360-degree Around View Truck Blind Spot Monitoring System

share
twitterwechatfacebooklinkedin
Model:K10
1. Screen size: 10.1 inches 2.5 D touch screen
2. Resolution: 1024*600 IPS
3. System: Android 8.1, Processor: MTK6761 CCRTEX-A53 quad-core processor, RAM: 2+32G,
4. Positioning mode :GPS+ Beidou + GLONASS+ AGPS
5. Network :4G full netcom (China Mobile/China Unicom/China Telecom) supports external SIM cards
6. Power input: 9-36V wide voltage

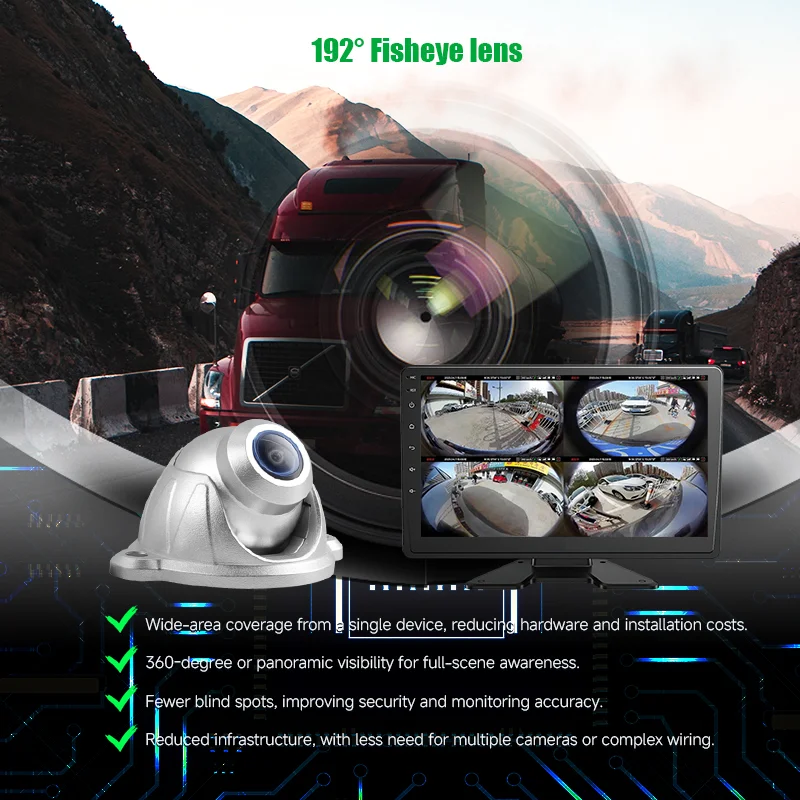

7. Standard equipped with 1080P fisheye night vision camera, 180-degree angle, waterproof IP69K
8. Operation mode, voice control (customized), touch operation, trigger display
9. Online navigation, 4G network monitoring and positioning
10. Storage format: MP4
11. Loop recording: Supported
12.TF card: 16-256G(Class10)U1 high speed card (support 500GB SSD)
Operating temperature: -20℃ to+70℃

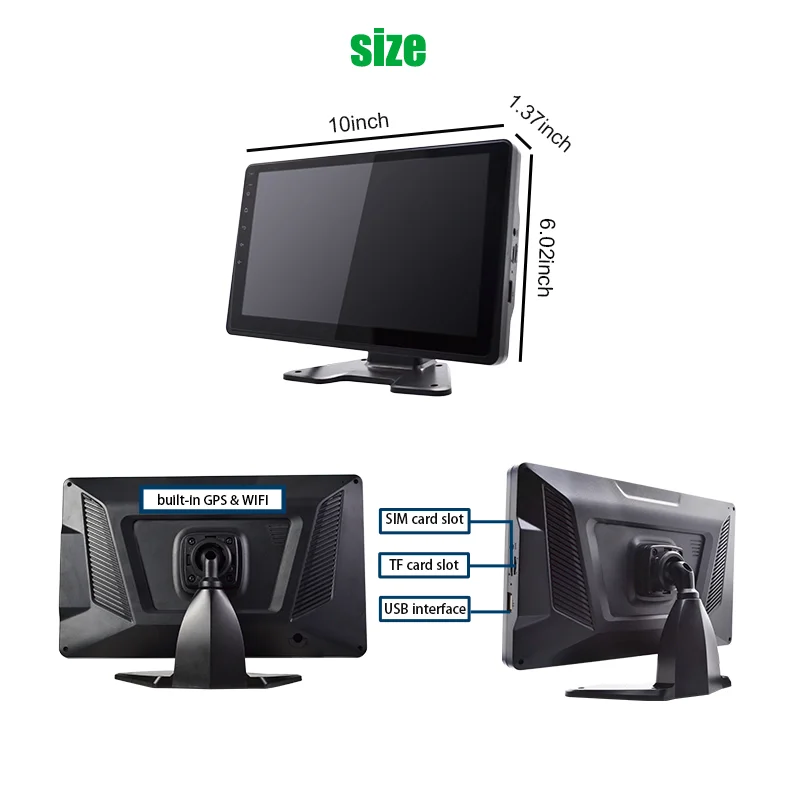

Body size: 254*153*35mm Body weight:813g
14. main functionSeamless 360-degree panorama, omni-directional real-time monitoring.With GPS, navigation, CMSV6 background, circular video, easy installation, aviation head interface, safe and reliable, wide range of application

Product Details
Key Attributes

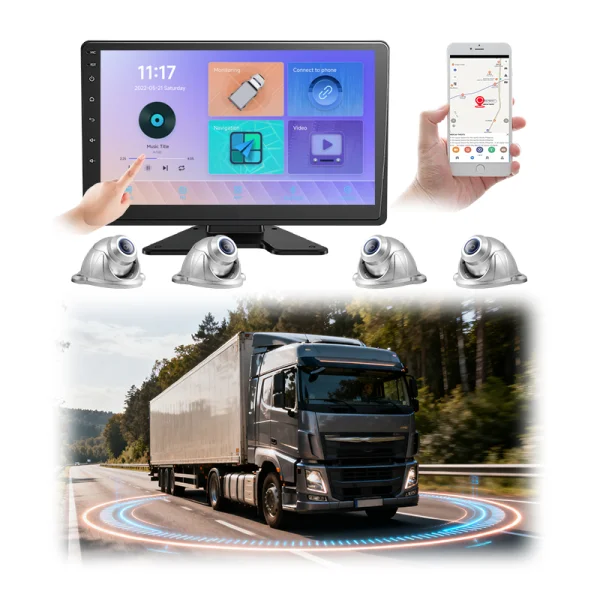

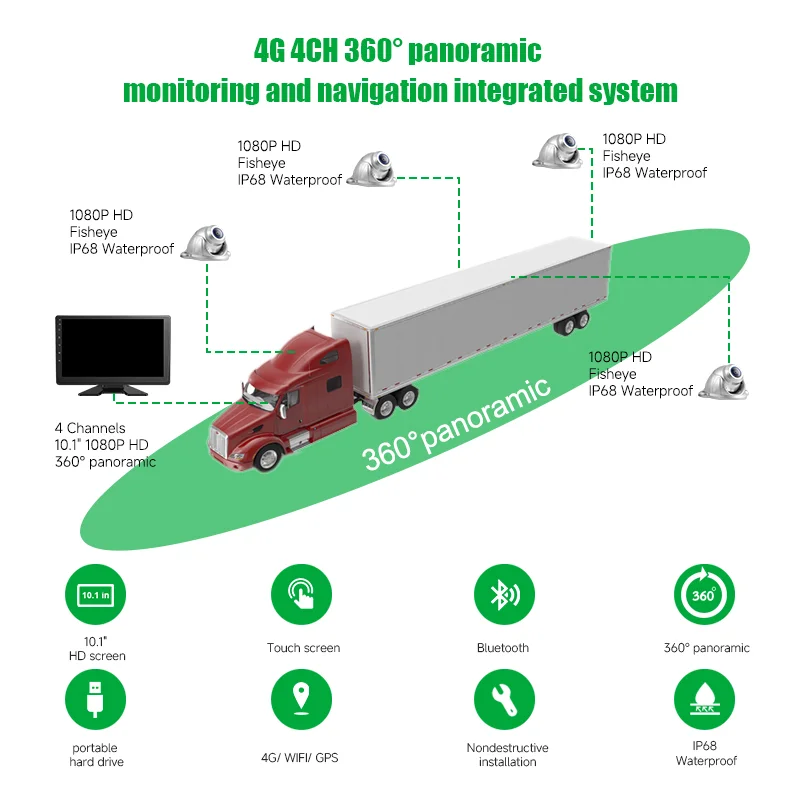

The K10 is an all-in-one 4G WIFI monitoring and navigation system designed specifically for trucks and commercial vehicles. It integrates four-channel HD surveillance, 4G remote access, voice control, multi-mode navigation, Bluetooth calling, and FM transmission. With four wide-angle cameras providing 360° coverage, it effectively eliminates blind spots and reduces accidents. Supports real-time remote viewing, video playback, and route tracking — the ideal companion for safe and efficient truck driving.

Features:

4-Channel HD Monitoring:  Supports four AHD cameras (720P/1080P), simultaneous recording and display.

4G Remote Access:  Real-time video, remote photo capture, route replay, and vehicle location tracking.

Smart Voice Assistant(Customizable Function): Control navigation, music, calls, etc.

Multi-Mode Navigation:  Built-in Amap with GPS + BeiDou + GLONASS + AGPS positioning

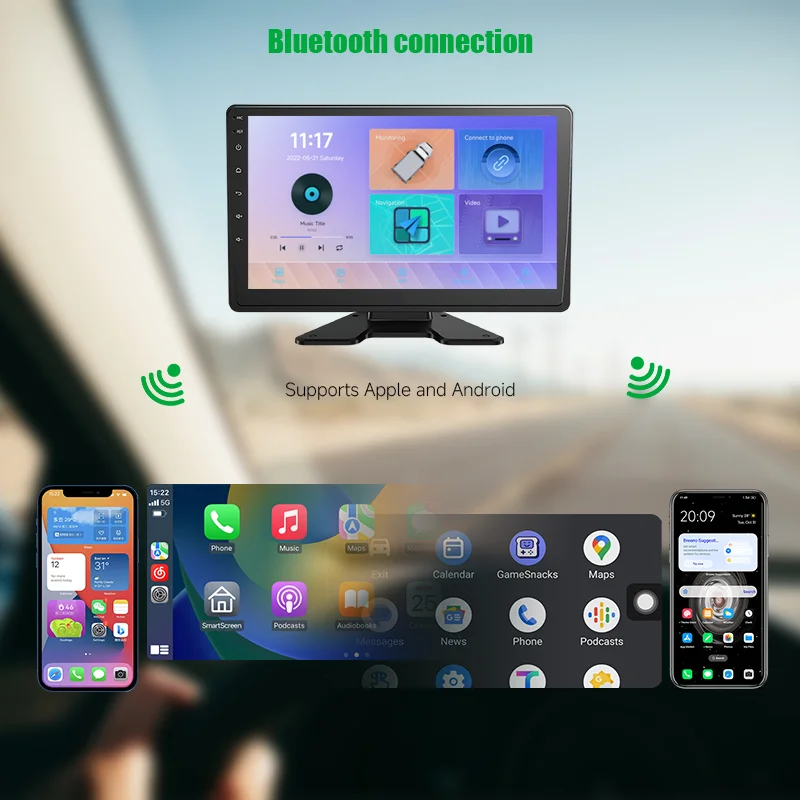

Mobile Screen Mirroring:  Supports CarPlay, HiCar, and Baidu CarLife via wired/wireless connection

Large HD Display:  10.1-inch IPS full-view screen with 720*1280 resolution

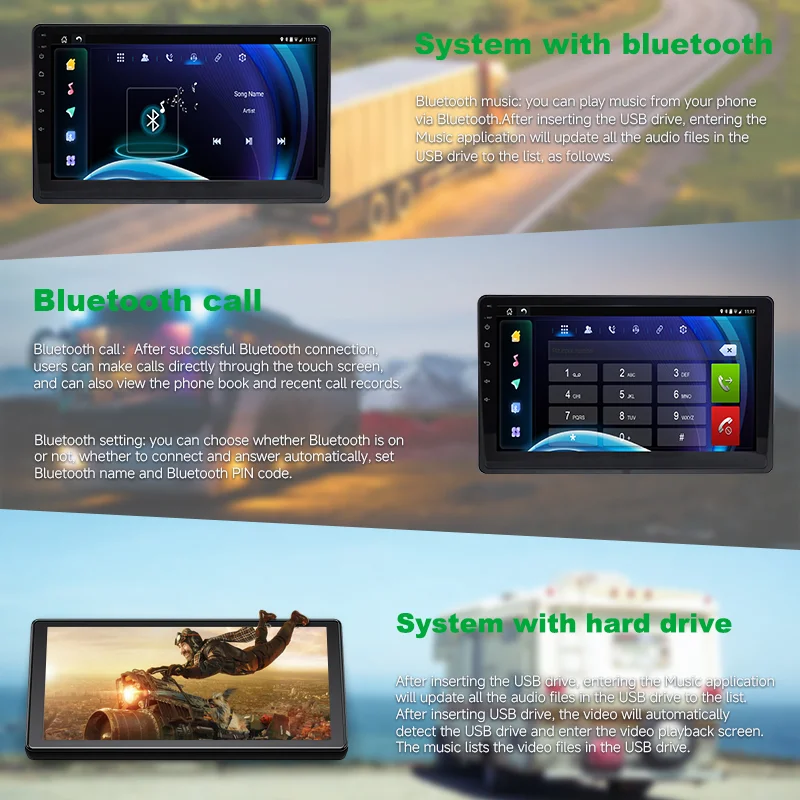

Entertainment System:  Local/online music, video playback, Bluetooth calls, FM transmitter

Professional Installation & Expansion:  Supports up to 512GB TF card, four trigger inputs (reverse/turn signals)

Dedicated App Control:  Remote viewing, photo capture, navigation sending, and alerts


4G Truck DVR Navigation System
4G Truck DVR Navigation System



Industry-specific attributes

Car FitmentTOYOTA TRUCK
Function360-degree panorama, omni-directional real-time monitoring.With GPS, navigation, CMSV6 background, circular video
Voltage9v-36v

Other attributes

TypeParking Sensor, DASH CAM, Reverse Camera, Monitor, Backup camera
View Angle360-degree panoramic view
Warranty1 Year
Place of OriginGuangdong, China
Brand NameHOPE
Model NumberHP-K10
Screen size10.1 inches 2.5 D touch screen
Resolution1024*600 IPS
SystemAndroid 8.1, processor
Positioning modeGPS+ Beidou + GLONASS+ AGPS
Network4G, wifi
Loop recordingSupported
Camera1080P fisheye night vision camera, 180-degree angle
WaterproofIP69
Operation modevoice control (customized), touch operation, trigger display
Storage formatMP4
