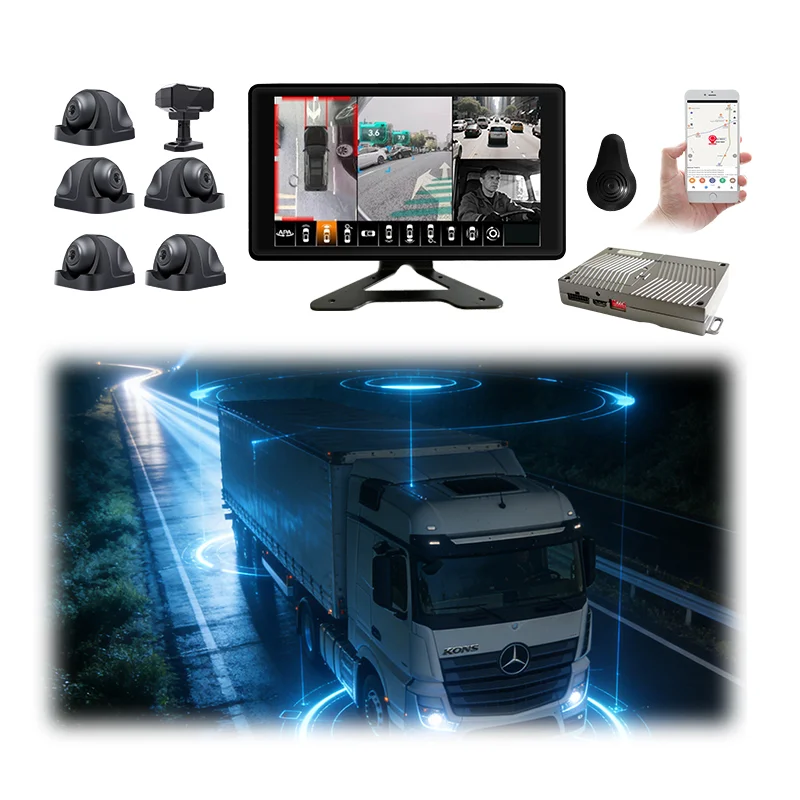

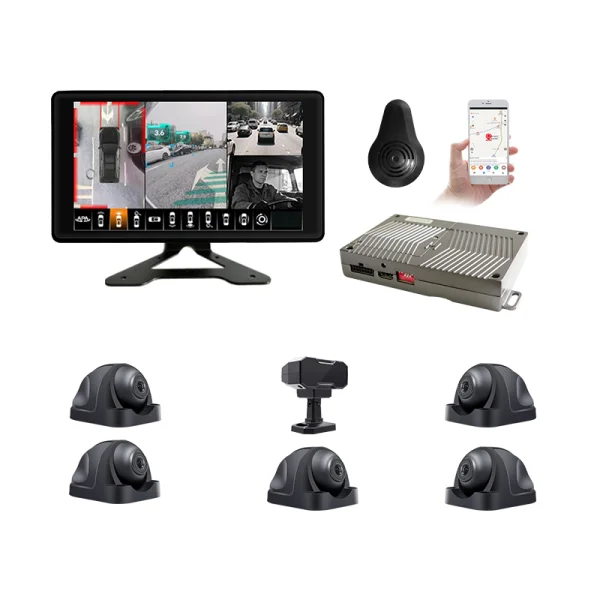

6 channel Mobile DVR System 360° blind spot monitoring system for trucks
2. 4G/WiFi/GPS Triple Connectivity：Remote live view, GPS tracking, mobile APP control
3. DMS Driver Monitoring System：Real-time alerts for fatigue, distraction, smoking, phone use
4. AI Smart Detection：Identifies pedestrians, vehicles, obstacles with voice & visual warnings
5. Panoramic Stitching & View Adjustment：Bird’s-eye view, 3D surround, distortion correction, fine-tuning
6. Multi-Trigger Activation：Auto-switch via turn signals, reverse gear, radar, speed, door, P-key
7. Parking Mode & Low Voltage Protection：Up to 24-hour recording, auto shutdown below set voltage
HOPE V23-6CH 6-Channel AI-Powered Commercial Vehicle Safety System is engineered for modern fleet management and driver safety. Integrating 4G remote monitoring, GPS real-time tracking, WiFi connectivity, DMS driver behavior analysis, 360° panoramic view, and blind spot detection, it delivers a comprehensive, intelligent safety ecosystem for commercial vehicles. Featuring 6-channel 1080P HD video input (4 surround views + 2 expandable channels), the system utilizes AI-based image stitching technology to create a seamless bird’s-eye surround view, with support for 3D perspective, single-camera view, distortion correction, and viewing angle adjustment. The built-in DMS module monitors driver fatigue, distraction, smoking, and phone use, issuing real-time voice alerts. Additional advanced functions include AI pedestrian/vehicle/obstacle detection, radar integration warnings, multi-brand vehicle protocol compatibility, parking surveillance, low-voltage protection, and dual storage loop recording. Ideal for enhancing fleet safety, reducing accident risks, and ensuring driver and vehicle security.
Reliable Vehicle Safety Hardware with Flexible OEM/ODM Service.
No Big MOQs. Fast Prototyping in 7 Days. Compatible with Major Fleet Platforms.
Why do you need 6CH 360°Around View Driving Assistance System?
How can large vehicles ensure compliance with international and regional safety regulations on the road?
How can long vehicles drivers enhance their awareness in complex road conditions and environments?
How can a single system provide comprehensive warnings during vehicle operation?
How can calibration be completed quickly to save costs?
How can remote vehicle management be achieved to improve management efficiency?

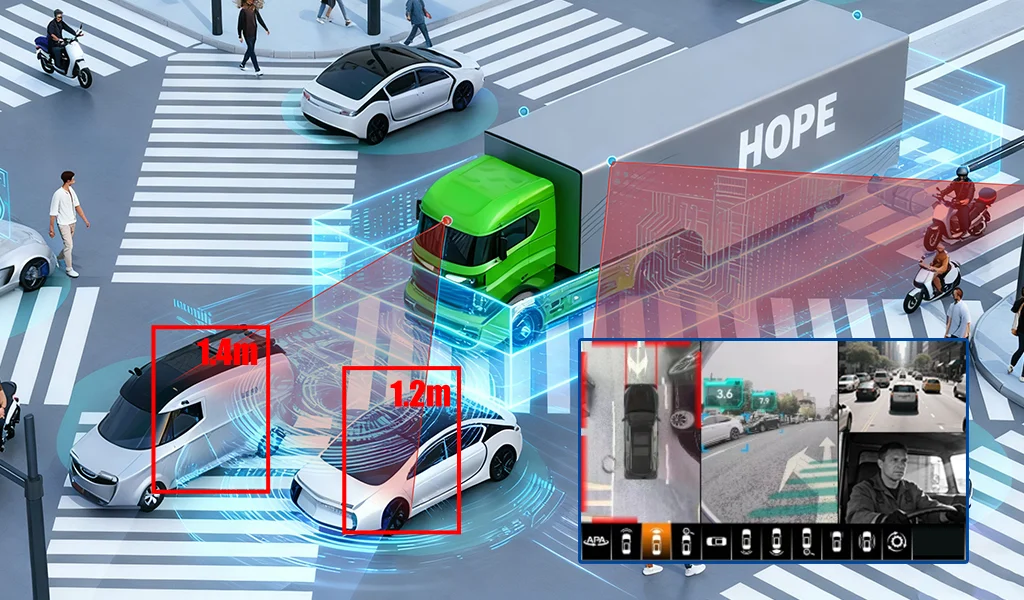

Built-in Al algorithm, integrated BSD 360 degree detection, is able to detect pedestrians/vehicles/obstacles, and then to give an alarm. (The front and rear views show the distance between pedestriansor obstacles and your vehicle.)
Panoramic Image Synthesis Technology
Panoramic image synthesis technology: The 6CH 1080P full HD images are seamlessly stitched after distortion correction, and then rendered into 3D scene to simulate the real driving scene.
Support for large-capacity memory for continuous video recording
Equipped with 2TB large memory
1. Longer Storage: No need for frequent record clearing; suitable for long-distance driving and extendedoperation of large vehicles, reducing the risk of critical footage being overwritten dueto insufficient memory.
2. Multi-camera adaptation: Supports 360°panoramic and other multi-channel recording,capable of storing higher resolution and longer durations of multiple images without lag.
Efficient fleet management
Compatible with CMSV6 platforms, support PC or mobile remote control; Support real-time positioning, historical track query, remote download recording, electronic fence and other special functions; Dangerous driving events and abnormal vehicle staus can be uploaded to fleet monitoring platform; Support rapid customization development to meet customer needs. Achieve data platform management and enable fleet management.

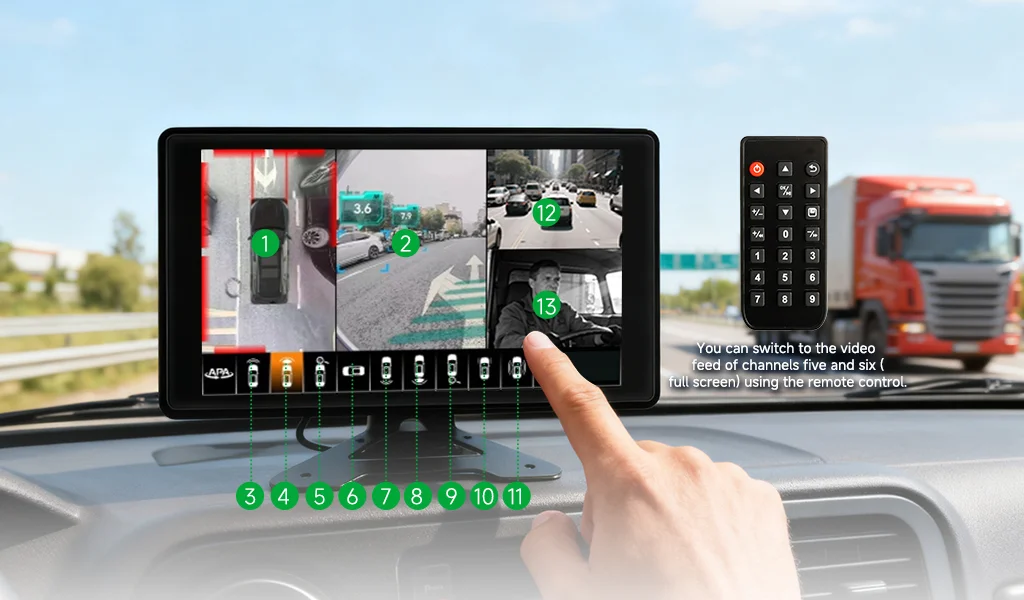

360° panoramic AR+Al algorithm monitoring
1. 360° panoramic view: When obstacles or pedestrians are detected, a red rectangle will be displayed.
2. Al algorithm detection: If pedestrians/vehicles/obstacles are present, the distance betweenthe pedestrians/vehicles/obstacles and the vehicles will be displayed.
3. Front view wide angle
4. Front-view Al algorithm detection:lt will show the distance betweenpedestrians or obstacles and the vehicle.
5. Front view zoom
6. Dual birds-eye view panoramic 360-degree surround view. overhead view and 3D surround view
7. Rear view wide angle
8. Rear-view Al algorithm detection:lt will show the distance betweenpedestrians or obstacles and the vehicle.
9. Rear view zoom
10. Left and right perspectives
11. Wide-angle view from left and rightset up
12. Install a fifth camera according to your needs (e.g., inside the truck cargo area or in other blind spots).
13. DMS camera footage
Supports DMS algorithm, capable of monitoring driver fatigue
Monitors driver fatigue and issues auditory and visual alarm.

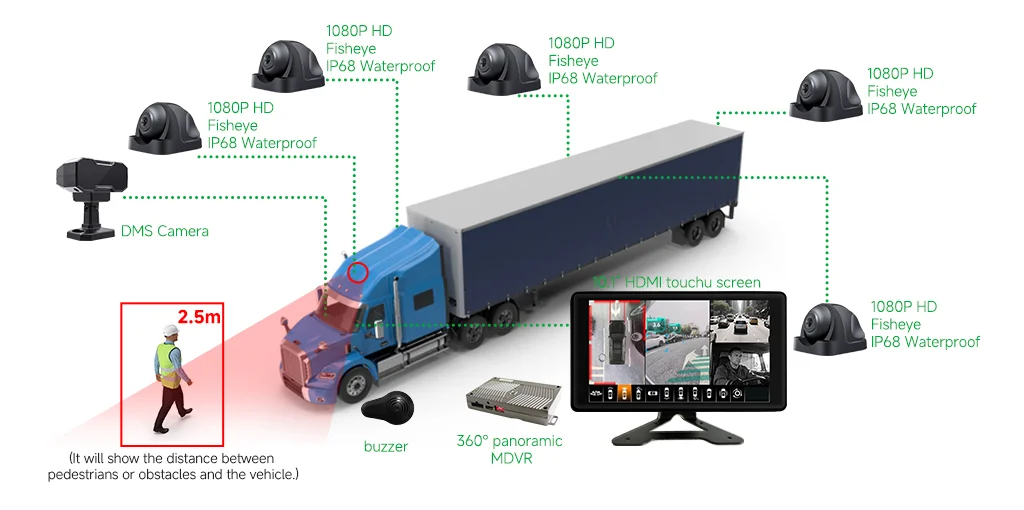

Application
The 6CH on-board AI MDVR integrates DMS/ADAS/BSD algorithms and is capable of efficiently handling multi-channel AI tasks. It can accurately identify various types of targets in real time and is an excellent driving assistance device. It is highly functional and is widely applied in various scenarios and various types of vehicles (trucks, buses, coaches, trailers, school buses, camper vans, tractor units, etc.) as well as ship monitoring. It ensures driving safety and effectiveness.
Industry-specific attributes
| Car Fitment | TOYOTA TRUCK |
| Function | With 4-channel recorder function, with seamless 360 panoramic 3D, multi-channel intelligent analysis |
| Voltage | 9v-36v |
Other attributes
| Type | Parking Sensor, DASH CAM, Reverse Camera, Monitor, Backup camera |
| Screen size | 10.1 inch HDMI Touch Screen |
| View Angle | 360-degree panoramic view |
| Warranty | 1 Year |
| Place of Origin | Guangdong, China |
| Brand Name | HOPE |
| Model Number | HP-V23-6CH |
| Resolution | 1024*600 IPS |
| Network | 4G, wifi |
| Loop recording | Supported |
| Camera | 6*1080P fisheye night vision camera, 190-degree angle |
| Waterproof | IP69 |
| Operation mode | voice control (customized), touch operation, trigger display |
| Max memory | 2TB |
| Net Weight | 3.8KG |
| Carton Size | 300*158*430MM |
