6 IR LED Lights Night Vision IP68 Rear View Truck Camera
The DC-806B is an AHD high-definition waterproof side-mount camera engineered for commercial trucks, passenger vans, and engineering vehicles. Equipped with a 1/2.9″ CMOS sensor and AHD 1080P output, it delivers crisp, real-time video with zero latency. Featuring 5×850nm IR LEDs and IR-CUT auto switch, it enables 24/7 surveillance with true color by day and sharp night vision by dark.
Built with an IP67 waterproof and dustproof rating, this robust camera performs reliably in rain, snow, and dusty environments. It operates across a wide temperature range of -20℃ to 75℃, making it suitable for extreme climates. The standard 2.8mm wide-angle lens offers a 110° horizontal view (up to 150° customizable), effectively eliminating side blind spots. With a 4-pin aviation plug, it supports tool-free installation and seamless integration with most vehicle monitoring systems.
Ideal For: Truck blind spot monitoring, bus side-view assistance, construction vehicle safety, commercial fleet management, and reversing camera systems.
Built with an IP67 waterproof and dustproof rating, this robust camera performs reliably in rain, snow, and dusty environments. It operates across a wide temperature range of -20℃ to 75℃, making it suitable for extreme climates. The standard 2.8mm wide-angle lens offers a 110° horizontal view (up to 150° customizable), effectively eliminating side blind spots. With a 4-pin aviation plug, it supports tool-free installation and seamless integration with most vehicle monitoring systems.
Ideal For: Truck blind spot monitoring, bus side-view assistance, construction vehicle safety, commercial fleet management, and reversing camera systems.
Product Details
Key Attributes
Features:
High Definition: AHD signal output, supports 720P/1080P resolution.

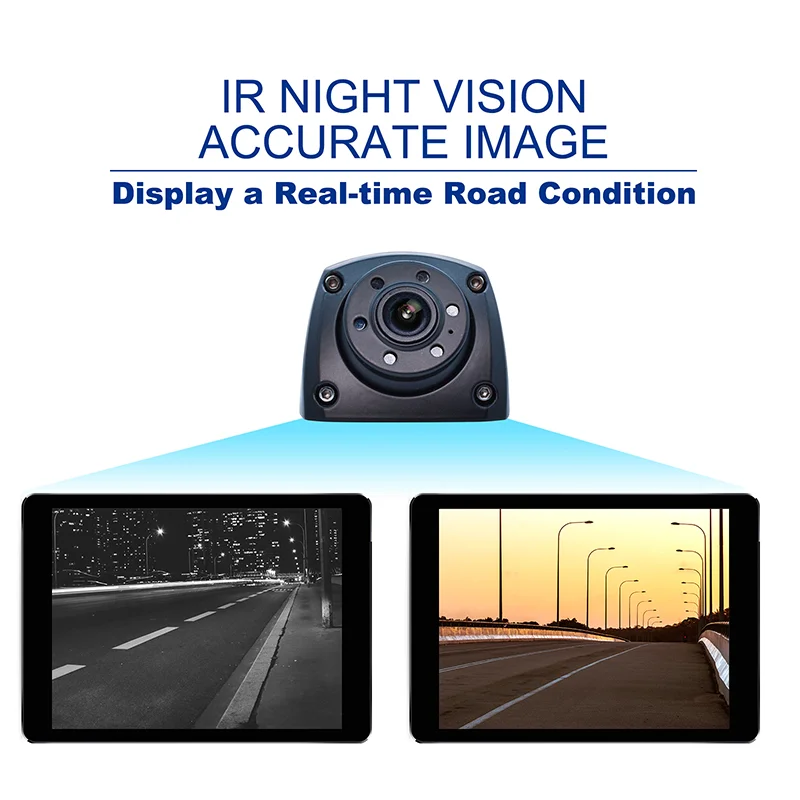

Superior Night Vision: Built-in 5 IR LEDs with IR-CUT auto switch for clear night imaging.
Waterproof & Durable: IP67-rated protection, suitable for harsh weather conditions.
Wide Temperature Range: Operating temp: -20℃ ~ 75℃; Storage temp: -30℃ ~ 85℃.
Auto Adjustment: Auto white balance, backlight compensation, and AGC for optimal image in varying light.
Wide-Angle Lens: Standard 2.8mm lens with 110° horizontal view (customizable up to 150°).
Low Power Consumption: Only 58mA operating current, 150mA when IR is activated.
Standard Connector: 4-pin aviation plug for easy and reliable installation.
Industry-specific attributes
| Car Fitment | Toyota - Europe Truck |
| Function | Waterproof, NIGHT VIEW |

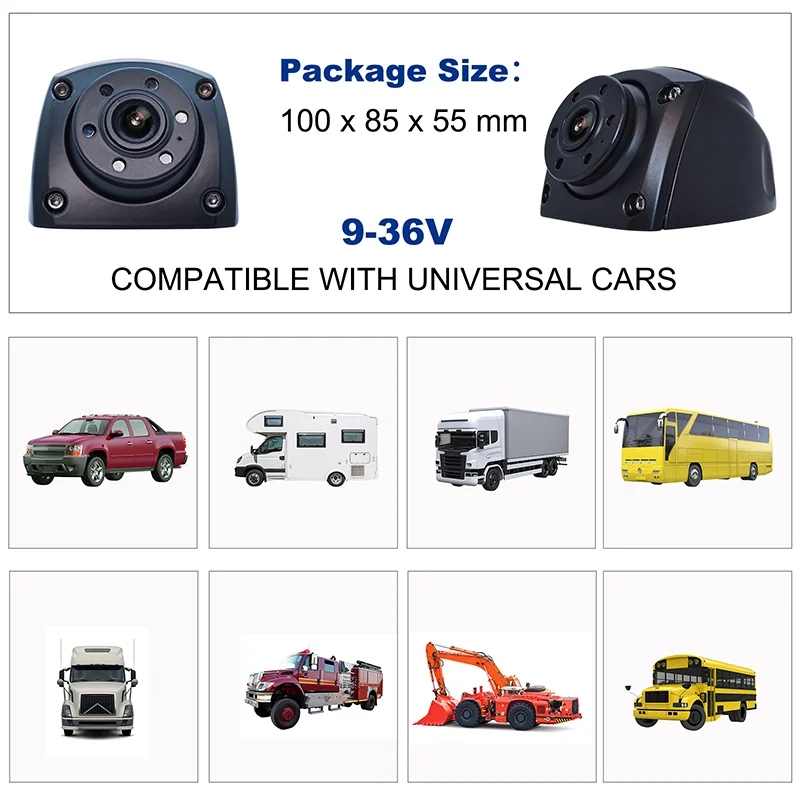

| Voltage | 9-36V |
Other attributes
| Model Number | RD-DC806B |
| Brand Name | HOPE |
| Type | Reverse Camera, Monitor, Backup camera |
| Resolution | 1080P |
| Sensor | 1/2.9＂AHD 1080P CMOS |
| Format | PAL/NTSC (Option) |
| Frame Rate | 25fps |
| Effective Pixels | 1920（H）×1080（V） |
| Vertical synchronization frequency | 50Hz; 60Hz |
| minimum illumination | 0.001Lux |
| Video Output | 1.0VP-P/75Ω |
| SNR(Signal to Noise Ratio) | ≥46dB |
| AGC | Auto |
| White Balance | Auto |
| BLC | Auto |
| lens | 2.8mm ,Customizable up to 150 ° |
| Effective Angle of the lens | Horizontal Angle: 110° |
| Night-vision effect | Infrared night vision IR-CUT automatic switching |
| Light board, audio | 850nm 5-lamp board, does not support audio |
| Video interface | AHD |
| Working current | 58mA±5%, infrared start-up 150mA±5% |
| Light q'ty | 6 lights |
| Working temperature | -20℃~ 75℃ |
| Storage temperature | -30℃~ 85℃ |
| Waterproofing grade | IP 67 |
| Position | Rear |
| Warranty | 1 Year |
| Net weight | 135g |
| Packing size | 135*85*55mm |
| Place of Origin | Guangdong, China |
