77GHz millimeter-wave radar & LED Warning Light for Forklift
RADAR
Operating Voltage ：9-24V
Sensor Operating Frequency Band：76-77Ghz
Operating Temperature ：- 40℃ ～ + 85℃
Power Consumption ：2.5W
Number of Channels： 3TX4RX
Pitch Beamwidth(6dB) ：－60°~＋60°
Horizontal Beamwidth(6dB)： －60°~＋60°
Sensor Waterproof Rating： Ip67

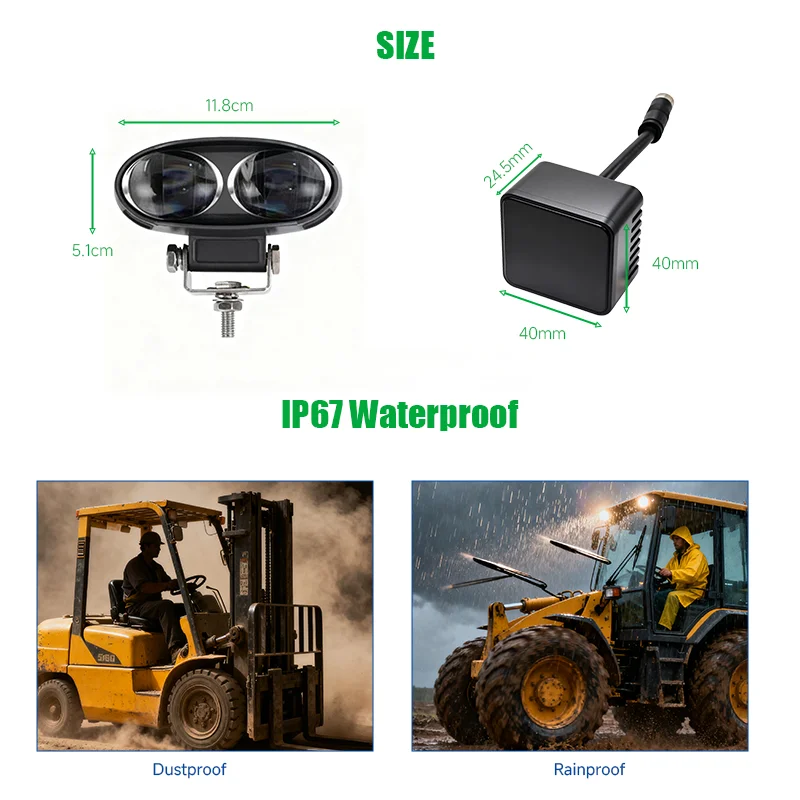

Sensor size（L*W*H）： 40x40x24.5mm
Distance Resolution： 0.2M
Speed Resolution ：0.36m/s
Speed Range： ±60km/h
Modulation ：FMCW
Detection Distance：Detection length 0.2~20m, detection width
0.4-8m, detection length and width can be limited, up to 2 detection areas can be set(the distance of each area can be configured)
Warning Light
Power: 20W
Voltage: DC12-110V
Luminous Flux: 980LM
LED Quantity: 4PCS (2PCS Red LEDs)(2PCS Blue LEDs)
Beam Pattern: Focused Linear Beam + Strobe
Wavelength: Red 680nm, Blue 480nm
Waterproof Rating: IP67
Operating Temperature: -25℃~+55℃
Material: Aluminum Alloy Housing, Stainless Steel
Perfect forklift collision avoidance system
77GHz millimeter-wave radar & LED Warning Light

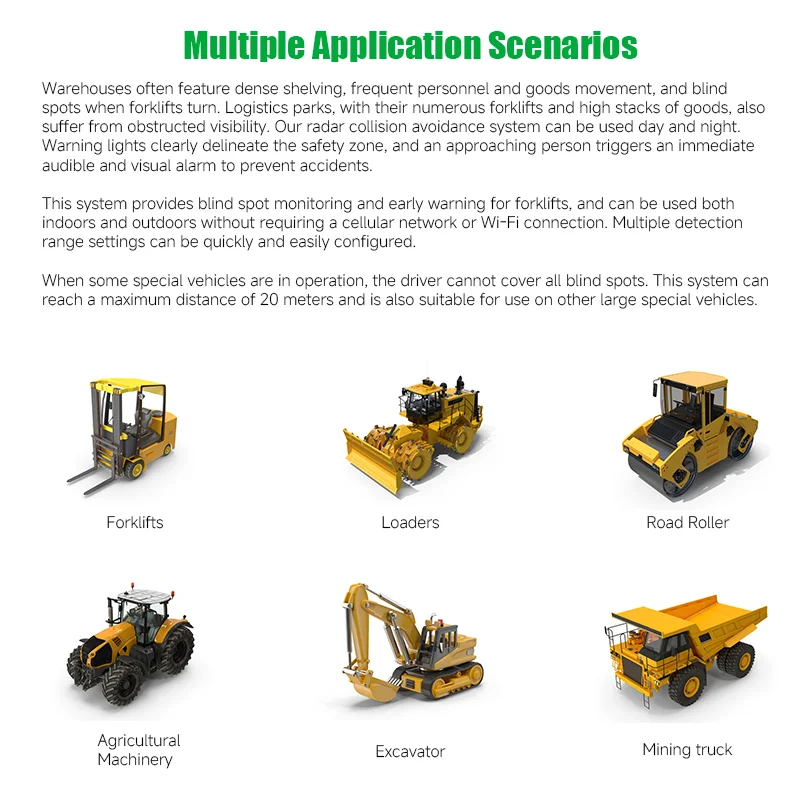

Warehouses often feature dense shelving, frequent personnel and goods movement, and blind spots when forklifts turn. Logistics parks, with their numerous forklifts and high stacks of goods, also suffer from obstructed visibility. Our radar collision avoidance system can be used day and night. Warning lights clearly delineate the safety zone, and an approaching person triggers an immediate audible and visual alarm to prevent accidents.
This system provides blind spot monitoring and early warning for forklifts, and can be used both indoors and outdoors without requiring a cellular network or Wi-Fi connection. Multiple detection range settings can be quickly and easily configured.

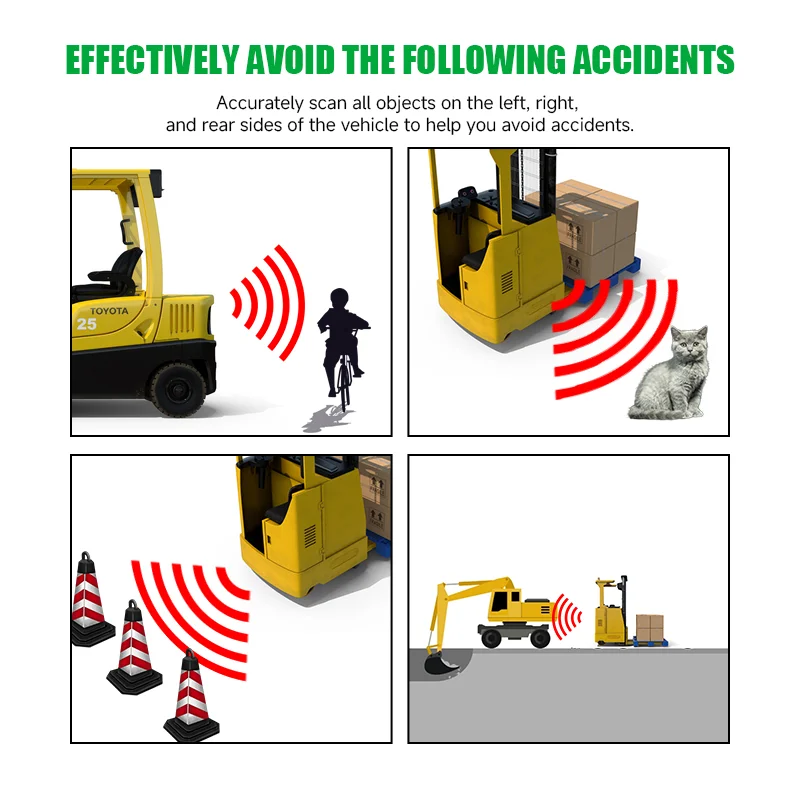

When some special vehicles are in operation, the driver cannot cover all blind spots. This system can reach a maximum distance of 20 meters and is also suitable for use on other large special vehicles.
PRODUCT FEATURES

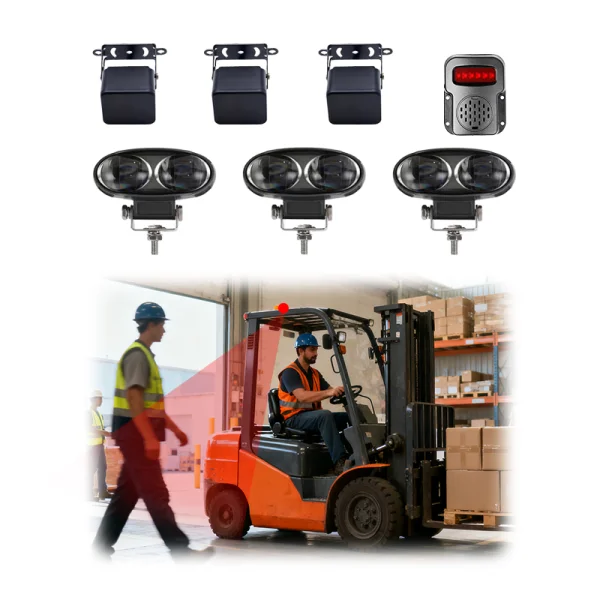

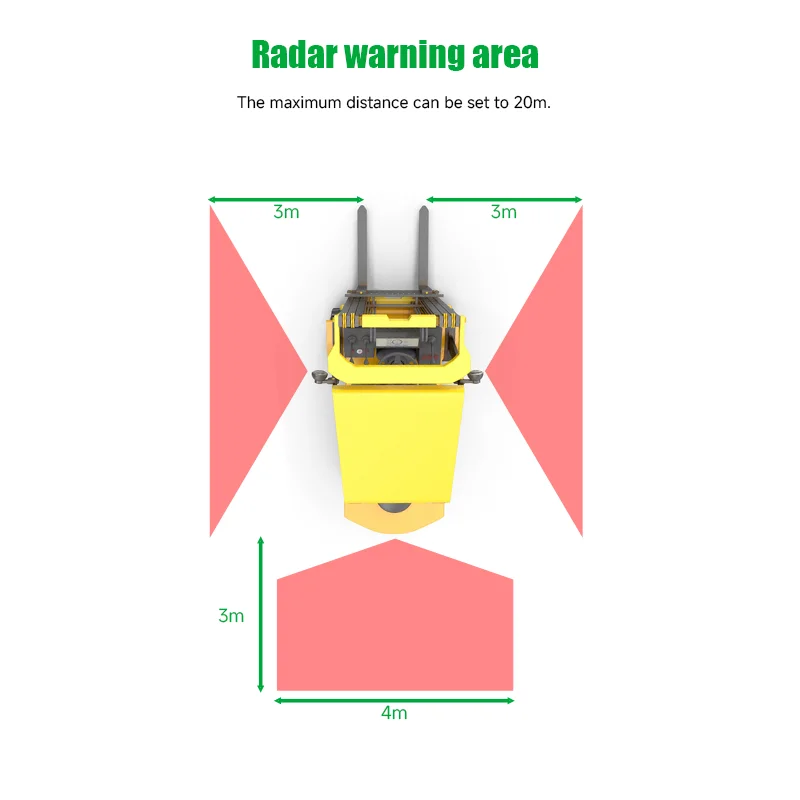

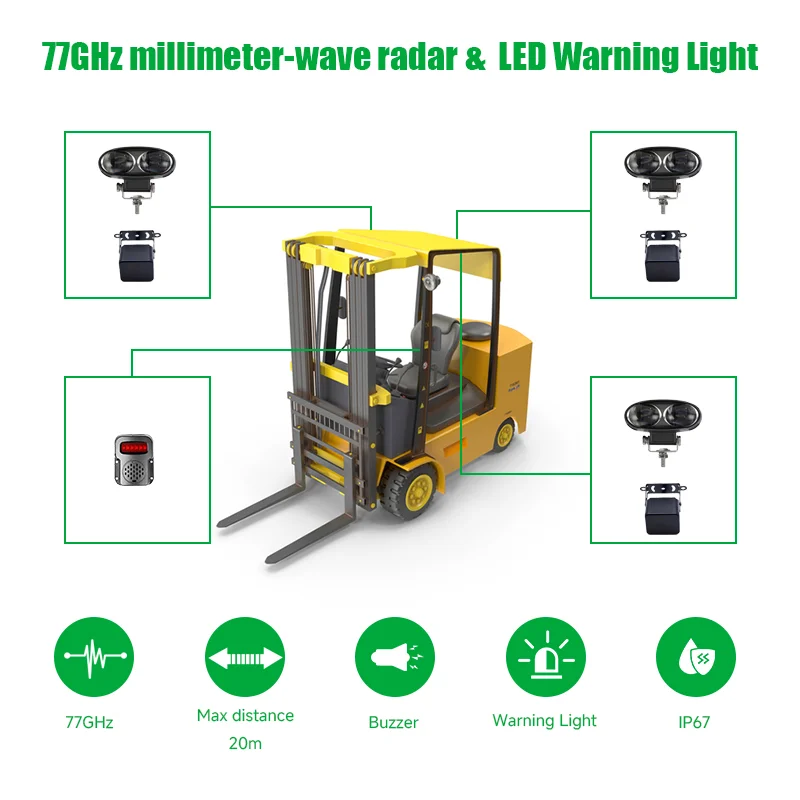

The system is equipped with three 77GHz millimeter-wave radars and three LED warning lights. The radars have a maximum detection range of 20 meters (including people, vehicles, and obstacles). For forklift mounting, a setting of 3-4 meters is recommended.

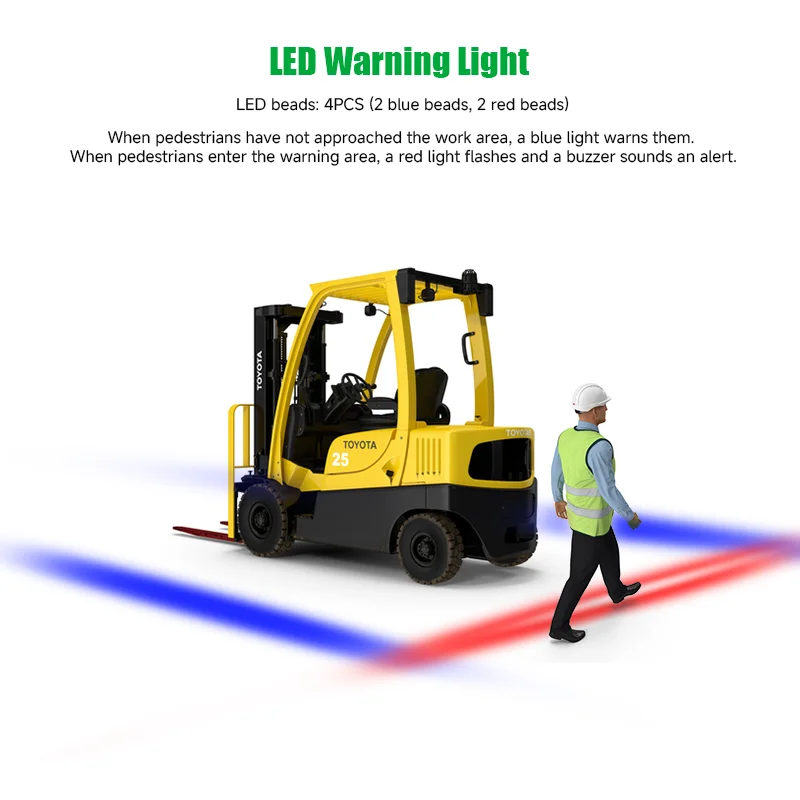

When pedestrians have not approached the work area, a blue light warns them.
When pedestrians enter the warning area, a red light flashes and a buzzer sounds an alert.
This equipment has a wide range of applications and is suitable for vehicles used in both the construction and agricultural industries.
| RADAR | |
| Operating Voltage | 9-24V |
| Sensor Operating Frequency Band | 76-77Ghz |
| Operating Temperature | - 40℃ ～ + 85℃ |
| Power Consumption | 2.5W |
| Number of Channels | 3TX4RX |
| Pitch Beamwidth(6dB) | －60°~＋60° |
| Horizontal Beamwidth(6dB) | －60°~＋60° |
| Sensor Waterproof Rating | Ip67 |
| Sensor size（L*W*H） | 40x40x24.5mm |
| Distance Resolution | 0.2M |
| Speed Resolution | 0.36m/s |
| Speed Range | ±60km/h |
| Modulation | FMCW |
| Detection Distance | Detection length 0.2~20m, detection width 0.4-8m, detection length and width can be limited, up to 2 detection areas can be set(the distance of each area can be configured) |
| Warning Light | |
| Power | 20W |
| Voltage | DC12-110V |
| Luminous Flux | 980LM |
| LED Quantity | 4PCS (2PCS Red LEDs)(2PCS Blue LEDs) |
| Beam Pattern | Focused Linear Beam + Strobe |
| Wavelength | Red 680nm, Blue 480nm |
| Waterproof Rating | IP67 |
| Operating Temperature | -25℃~+55℃ |
| Material | Aluminum Alloy Housing, Stainless Steel |
