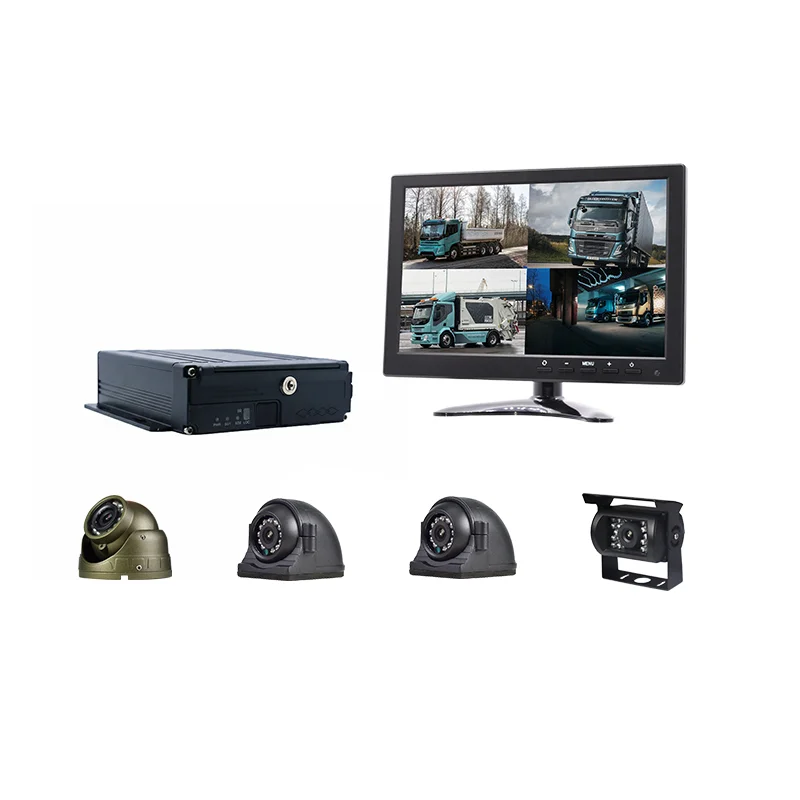

Vehicle Mobile DVR APP Remote Control 4 Channel Truck Bus Vehicle
1.4CH video local recording and playback, support 1080P(1920*1080).
2.Meet the ROSH,FCC,CE Standard. Adopt high quality positioning and communication module with good stability.
3.Support speed, turn, brake, reversing, doors opening and closing.
4.Watermark prevents data from being tampered to ensure the veracity and the legal efficiency of the data.
5.Supports remote online updating, can realize remote video.
6.Support local and remote upgrading.
7.Adapt 3G/4G network bandwidth dynamic changes automatically, improving video streaming consistency.
8.Mini size (140*154*41.5mm) breaks industrial extremity ,convenient for transportation and Installation.

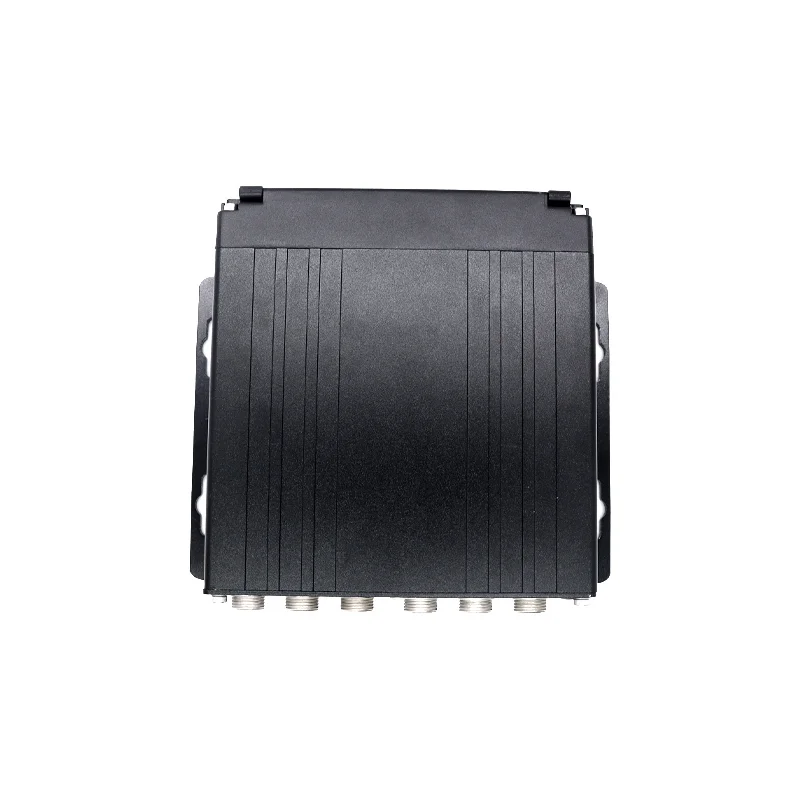

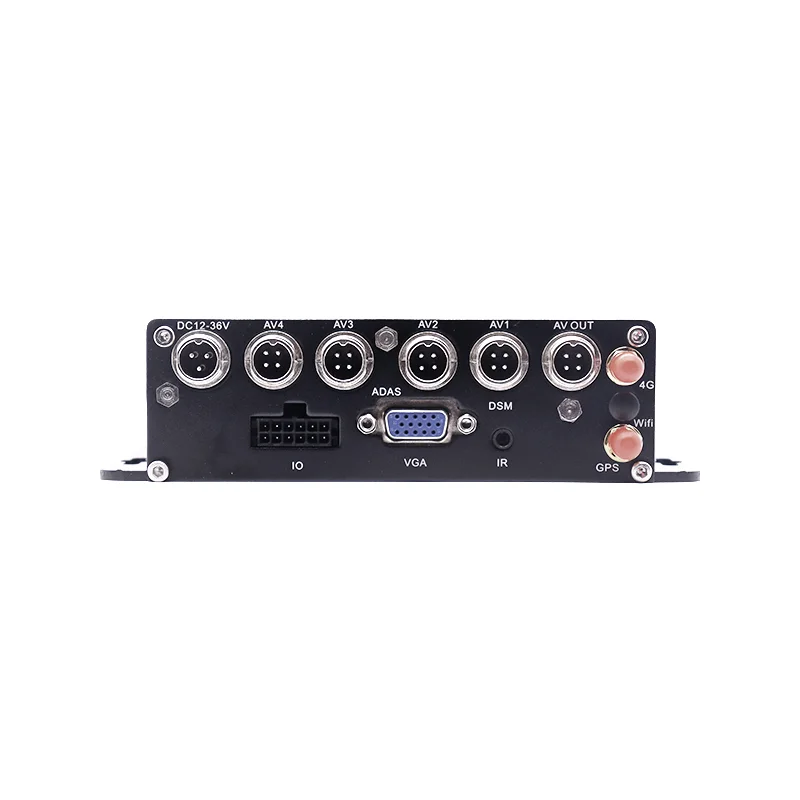

The HP-V20 is an advanced 4-channel AHD 1080P mobile digital video recorder, specifically designed for professional vehicle monitoring and remote monitoring. It is equipped with intelligent features such as blind spot detection (BSD) and advanced driver assistance systems (ADAS), ensuring higher safety and real-time fleet management. This MDVR has high scalability, dual storage support, and complies with international standards, including FCC, CE, and ROSH, providing a reliable and cost-effective solution for commercial and transportation vehicles.
Reliable Vehicle Safety Hardware with Flexible OEM/ODM Service.
No Big MOQs. Fast Prototyping in 7 Days. Compatible with Major Fleet Platforms.
Product Parameters
Items | parameters | Performance standard |
Name | Product name | 4CH Mini AHD Dual SD Card Mobile DVR |
System | Operation system | LINUX |
Operation interface | Graphical menu operation interface (OSD Menu) | |
File system | encryption file management system | |
Video | Video input | 4 channel AHD 1080P |
Video output | 2 channels （1channels is AV output,1 channels is VGA output) | |
Video display | 1 or 4 channels | |
Signal system | Maximum support PAL:25FPS;NTSC:30FPS | |
Total resources | 720:100FPS; 1080P:60FPS | |
Audio | Audio input | 4 channels |
Audio output | 1 channels | |
Record format | synchronized video & audio recording | |
Audio compression | G711a | |
Digital processing and storage | Video compression | H.264/H.265 |
Image resolution | Maximum support:4*1080(1920*1080) | |
Image quality | 1-8 levels adjustable (1 is the best) | |
Video bit-rate | 720P: 192K～4M bps(each channel) | |
Video storage | 720P: 84M～1.75GB Byte/hour(each channel) | |
Playback resolution | PAL:1 or 4*1080P(1920*1080)；NTSC: 1 or4*1080P(1920*1080) | |
Storage | Support 1*SD cards ,max 256GB each (The standard is 1* SD card, if you want support 2* cards, please make another request | |
Alarm | Alarm input | 4 channels ( activated by high voltage) |
Alarm output | 1 channel ,The voltage is 12V@500mA | |
Motion detection | High/middle/low sensitivity adjustable | |
LAN | RJ45 | Optional ( Used for video monitoring) |
Wifi | Optional | |
3G/4G | HSPDA/EVDO/CDMA2000/FDD-LTE/TDD-LTE Module optiona | |
GPS | GPS | GPS/ Glonass module optional |
Extension interface | RS232 | RS232 interface X1 ( RS232 and RS485 One of two options) |
RS485 | RS485 interface x1 ( RS232 and RS485 One of two options) | |
Intercom | Customization | |
G-Sensor | Customization | |
Others | Power supply and consumption | DC8-36V 5%≤8W |
Operating temperature/humidity | -20~+85℃/≤80% | |
Dimension | 140（L）*154（W）*41.5（H）mm | |
Package | L240*W200*H95mm/unit | |
Net weight | 0.9KG/set | |
Gross weight | 1 KG/set |
Where to find the perfect fleet management solution?
How to achieve abnormal situations' monitoring of people, vehicle, and road?
How can we quickly provide evidence when encountering accidents or thefts?
....
4CH In-Vehicle AI MDVR solves all your concerns with its high performance of the AI algorithms
HOPE 4CH In-Vehicle AI MDVR is integrated with ADAS, DMS, BSD andoother algrithms, speically designed reliable vehicle management solution for all kinds of vehicles, widely applied in buses, tourist buses, escort vehicles, school buses, cargo van, fire engines, emergency vehicles, passenger vehicles, etc. When it comes to fleet management of these vehicles, our 4CH In-Vehicle AI MDVR delivers a professional solution with its high performance, securirty guarantee, integration compatibility and customization capability.
Latest AI technology, able to achieve multiple algorithms and functions
Integrating DMS/ADAS/BSD algorithms, 4CH In-Vehicle AI MDVR is very efficient in processing multi-channel AI tasks and identifying different types of targets in real time, and thus is an excellent driving assistance. Since we also suppport algorithm customization, customers can even put their own algorithm inside and make it run with the others to handle all sorts of applications.

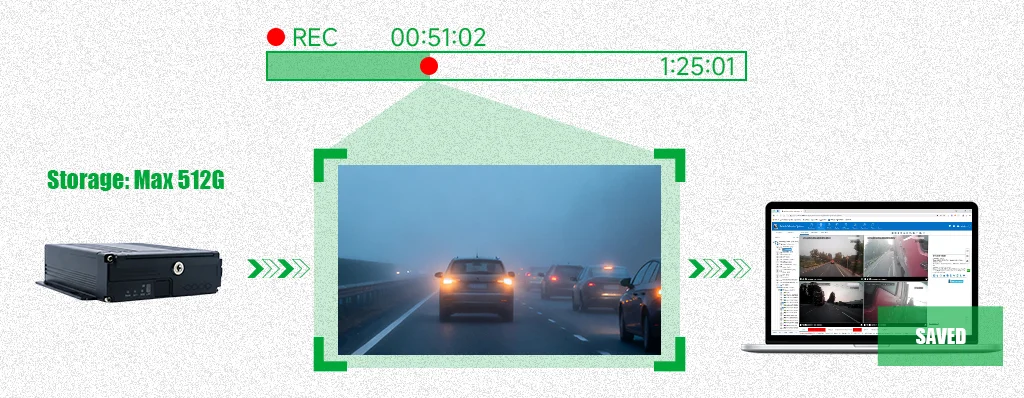

HD real-time monitoring & Strong recording function
FHD images allow users to customize the resolution. They can preview or replay videos/images in real time, record and replay driving videos, support loop recording, complete DMS/ADAS/BSD alarm functions, have ample storage space, and support a 512GB SD Card. In the event of a major traffic accident, it can preserve evidence of the driving situation, helping you avoid unreasonable damages and responsibilities.

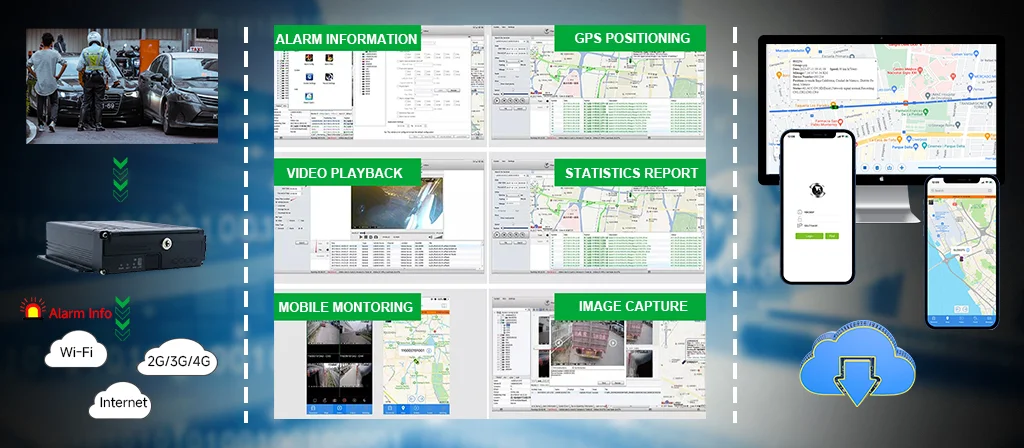

Efficient fleet management
Compatible with CMSV6 platforms, support PC or mobile remote control; Support real-time positioning, historical track query, remote download recording, electronic fence and other special functions; Dangerous driving events and abnormal vehicle staus can be uploaded to fleet monitoring platform; Support rapid customization development to meet customer needs. Achieve data platform management and enable fleet management.

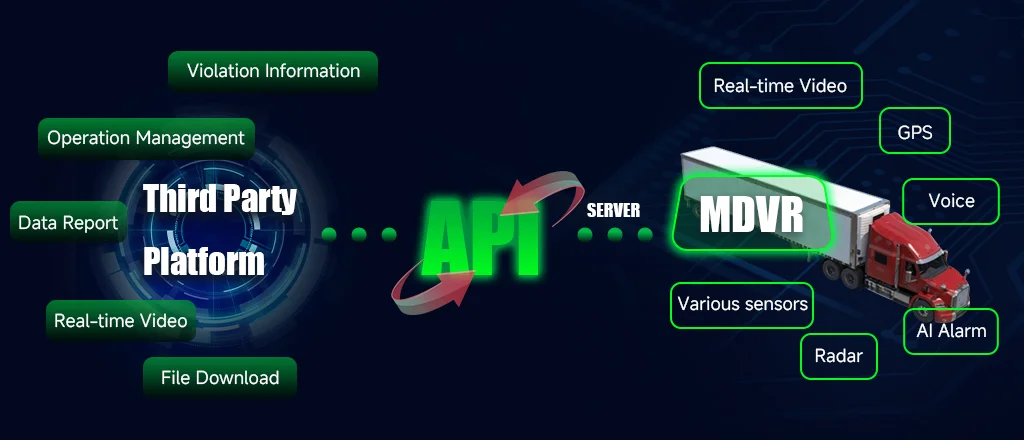

Support API to realize the interface with customer's system
MDVR could be linked to the server to provide API for customers to realize the interface with customer systems. Customers can either use our client or connect to their own system through the API. Thus, data exchange and information sharing could be achieved.

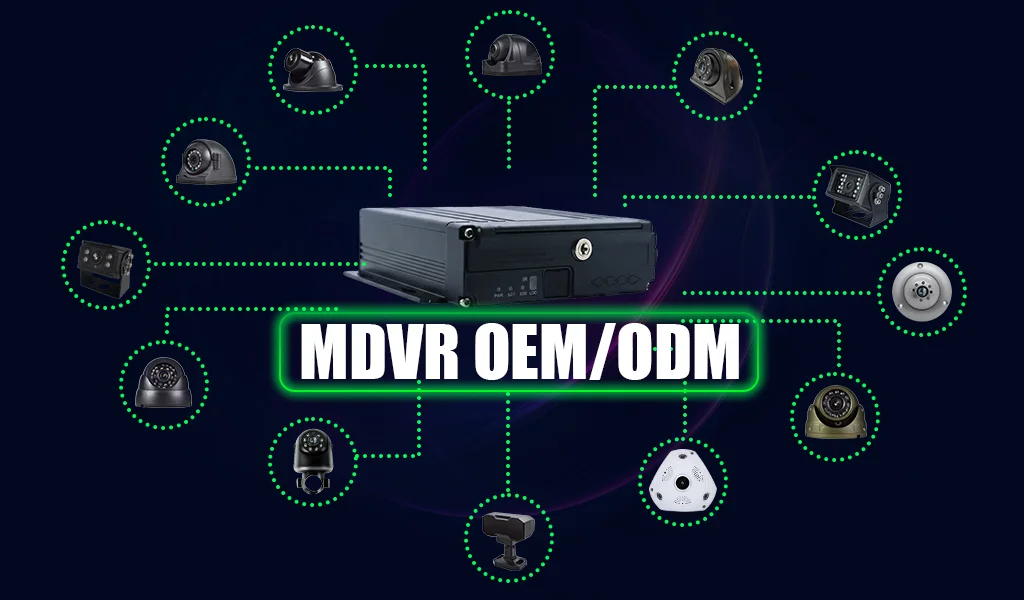

OEM & ODM Customization Services
We will configure the appropriate camera solutions based on the users' requirements, aiming to fully meet their needs. Such solutions include infrared cameras, waterproof cameras, fisheye cameras, and customizable cameras with different sized angles according to the customers' needs. Additionally, the color can also be customized.

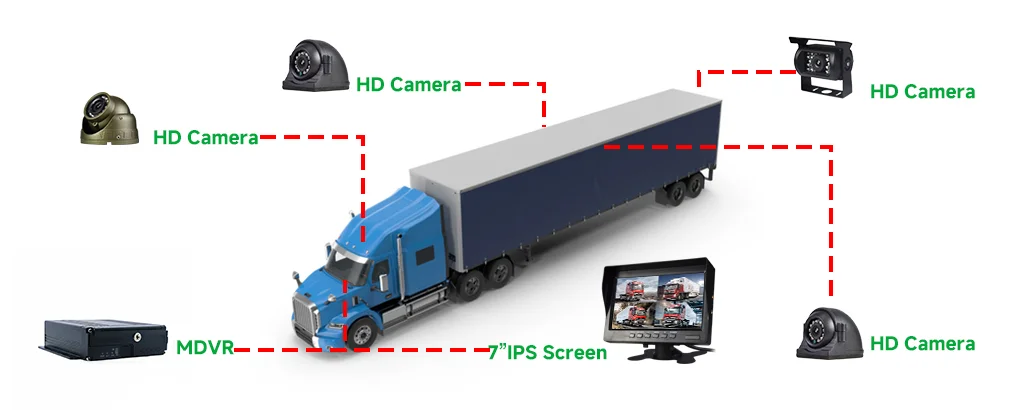

Application

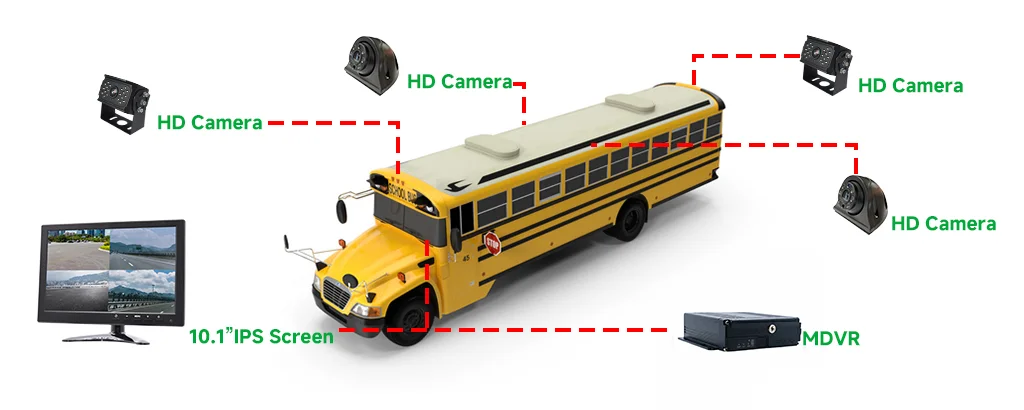

It can be equipped with a 7-inch or 10.1-inch high-definition screen display. The on-board 4-channel recording and monitoring system represents a significant upgrade in the field of vehicle surveillance. It is highly functional and widely applied in various vehicles (trucks, buses, coaches, trailers, school buses, campers, tractor units, etc.) and ship surveillance, ensuring driving safety and effectively improving operational efficiency.
Industry-specific attributes
| Type | Video Recorder, Event Data Recorder(EDR), MDVR |
| Car Fitment | DONGFENG, Mercedes - Europe |
| Screen Type | IPS |
| Angle | 170° |
| Function | Waterproof, NIGHT VISION, Remote Control, FULL COLOR, park MODE, Loop recording |
| Lens Amount | 4 |
Other attributes
| Screen Size | 9" |
| Resolution | 1080P |
| Number of cameras | 4 |
| Voltage | 9-36V |
| Working Temperature Range | -20 - 70 ℃ |
| Warranty | 1 Year |
| Place of Origin | Guangdong, China |
| Brand Name | HPLRHITC,HPWBCAM |
| Model Number | HP-V20-C-9" |
