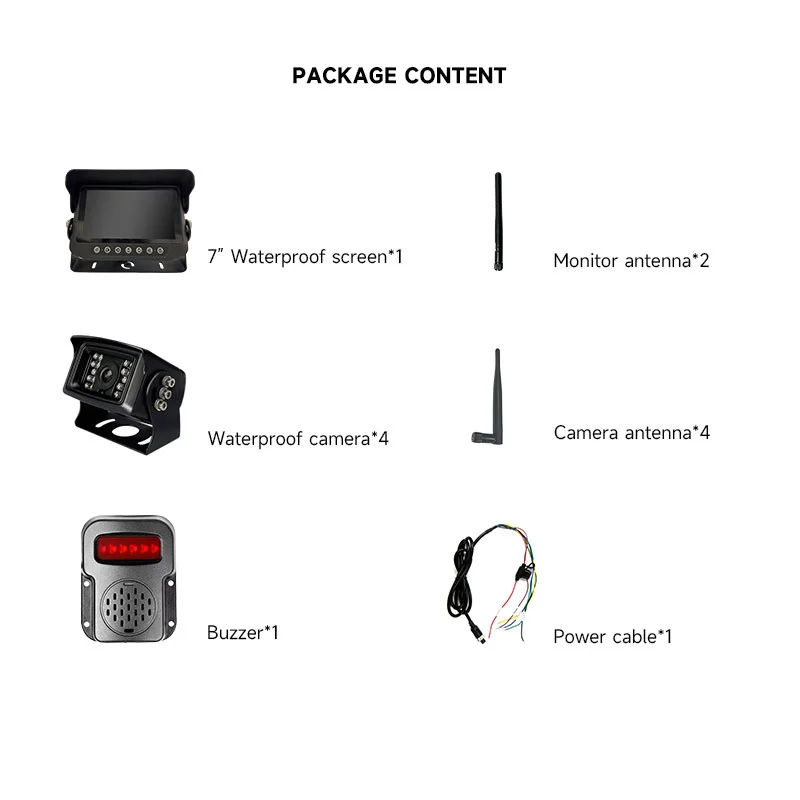

Wireless Backup Camera 7-inch IP67 Waterproof Monitor IP68 Camera
Wireless waterproof screen
Operating system: Linux, operation interface: physical button operation
Start-up time: 3S Min/170mS AVG.
Display: LCD screen: 7 inch IPS, resolution: 1024*600, contrast: 500:1, backlight brightness: 500 cd/m²,
Video recording: Video duration: 1Minute
Video resolution: 1280*720 (MAX)

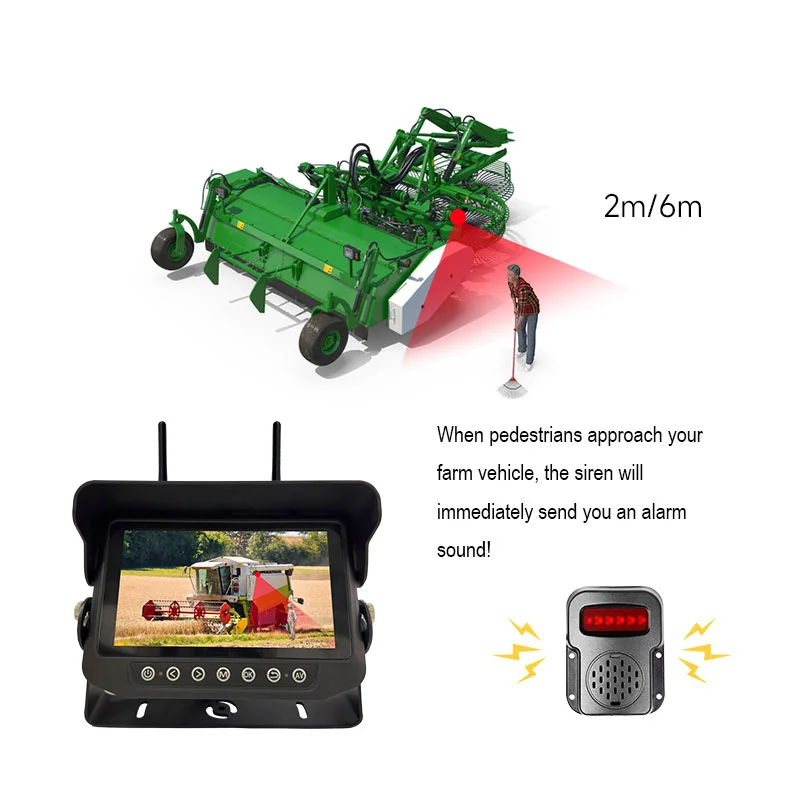

AI alarm (people/vehicles): screen icon, built-in voice, external sound and light
Storage: Micro SD card, CLASS10 U1, maximum support 512G
Voice broadcast: built-in 8Ω@2W speaker, supports mp3/wav and other formats, changeable voice
External sound and light alarm: IO trigger (50MM/4R5W)
Power supply voltage: 9-36VDC, working current: 60±30mA @12VDC, waterproof rating: IP67

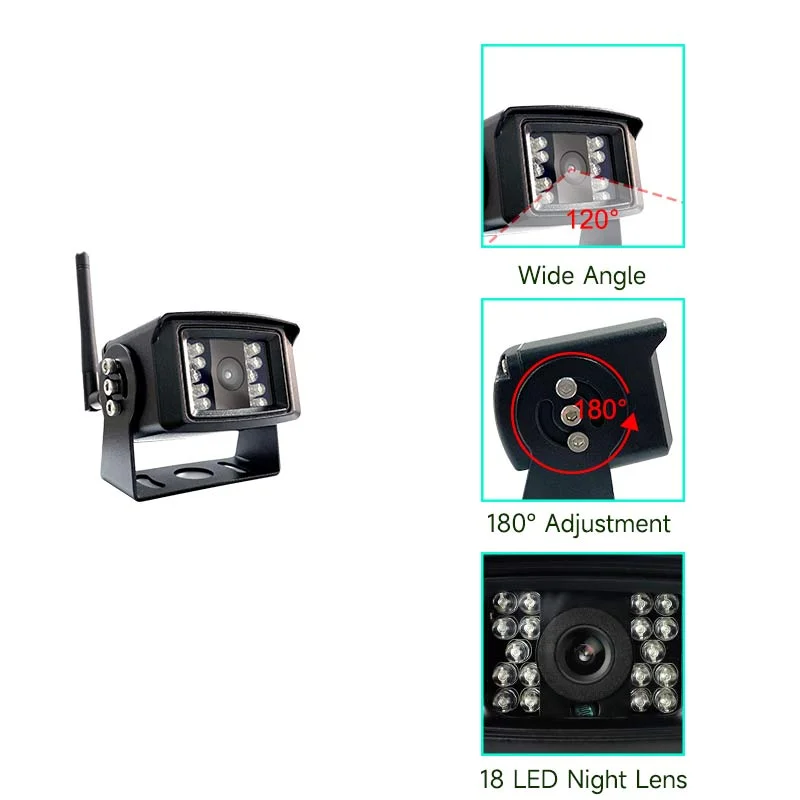

Digital camera
Image sensor: 1/2.9" GC2053, lens focal length: 2.8mm
Image processing: automatic exposure, automatic white balance control, 2D/3D noise reduction, wide dynamic range control, waterproof rating: IP67, shockproof rating: 10G
Operating voltage range: 9-36VDC
RF specifications:
Identification: Pairing / 22 (4KK)
Pairing method: TX: automatic/manual; RX: menu operation
Frequency band: 2.412~2.4835 GHz ISM Band, RF output power: 20dBm ±1dBm
Receiving sensitivity: 11Mbps-86dBm@8%
Antenna input and output: 50Ω, 3dbi gain antenna
Environmental parameters
Operating humidity: relative humidity 85% RH, operating temperature: -20℃ ~ +70℃
Storage temperature: -30℃ ~ +80℃
Host size: 205*158.7*85mm, Host weight: 1050g

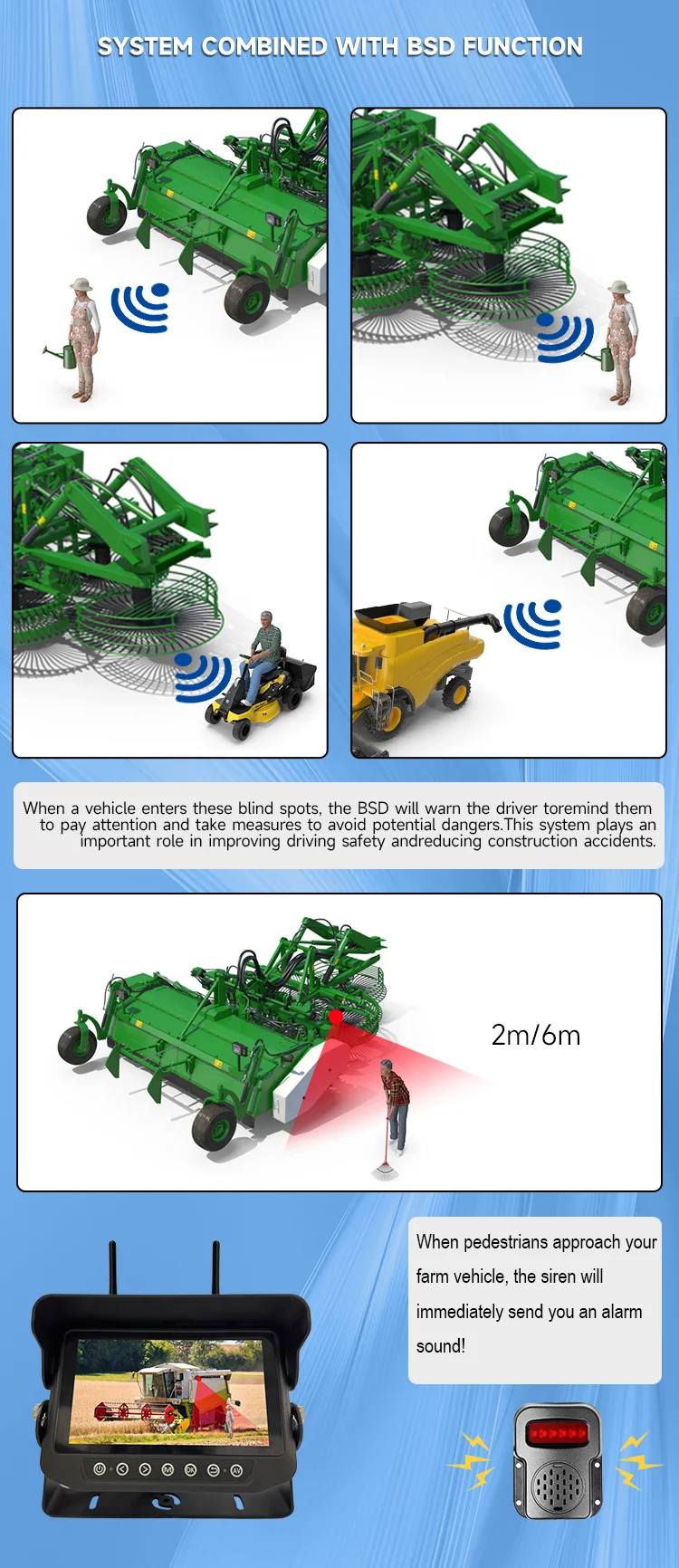

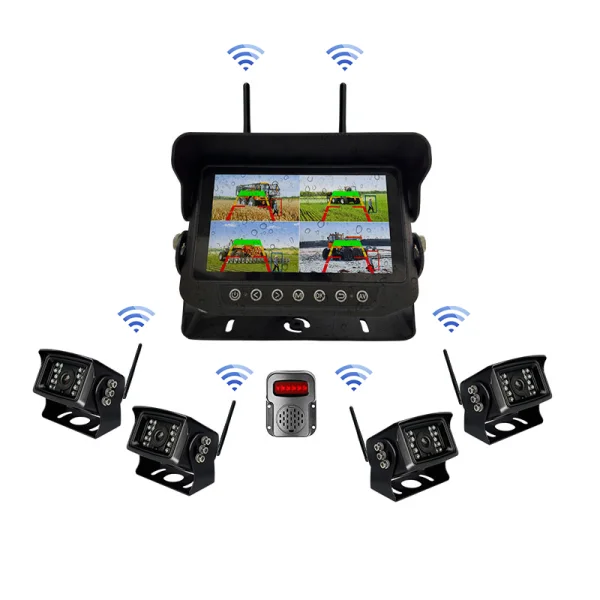

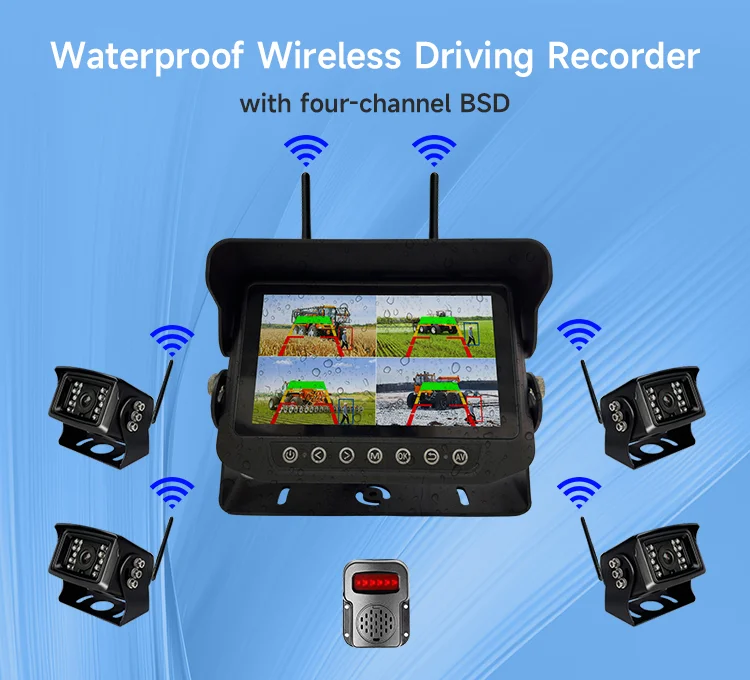

Main functions: waterproof metal display, supports 4CH recorder, 4CH BSD and sound and light alarm, uses 2.4G wireless technology, easy to install, suitable for forklifts, trucks, RVs, off-road vehicles, buses, school buses, heavy vehicles, engineering vehicles, agricultural machinery
INSTALL IN MINUTES – NO DRILLING OR WIRING: Plug-and-play setup with no tools required. The strong magnetic mount attaches securely to any surfaces, making installation effortless for any user. Perfect for RVs, trailers, , trucks and campers, providing fast, reliable safety with no hassle.
SEE EVERYTHING CLEARLY – HD 1080P & NIGHT VISION: Enjoy sharp HD 1080P visuals for clear images in any light. The advanced infrared night vision ensures safety during low-light driving or parking, offering peace of mind for nighttime travel.

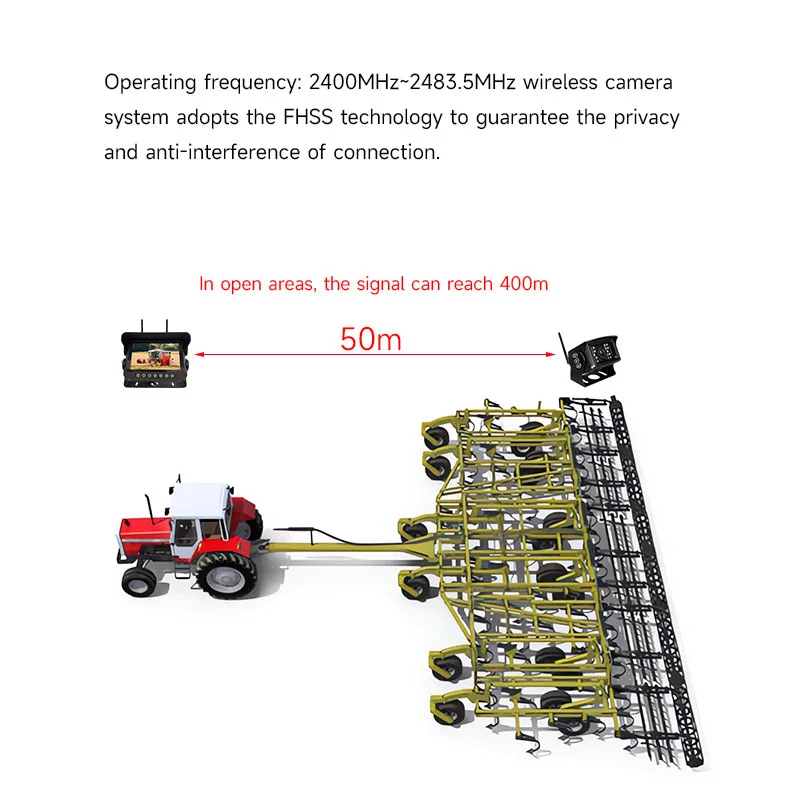

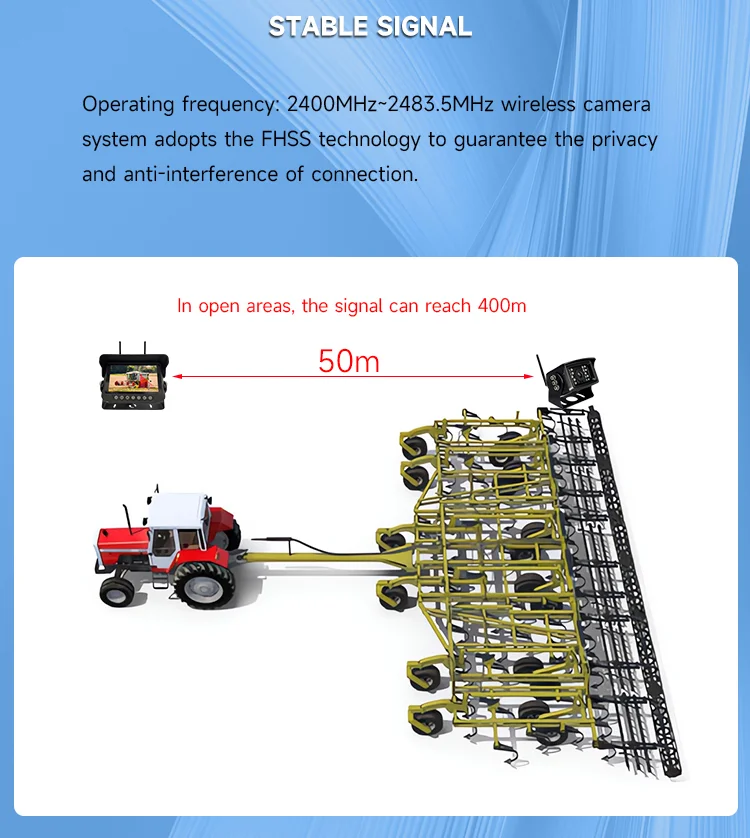

STABLE SIGNAL: Ensure seamless visuals with advanced 2.4G wireless frequency and dual antennas. Maintain stable connections up to 328ft in open areas, even in challenging conditions. No interruptions, just crystal-clear guidance for stress-free driving.

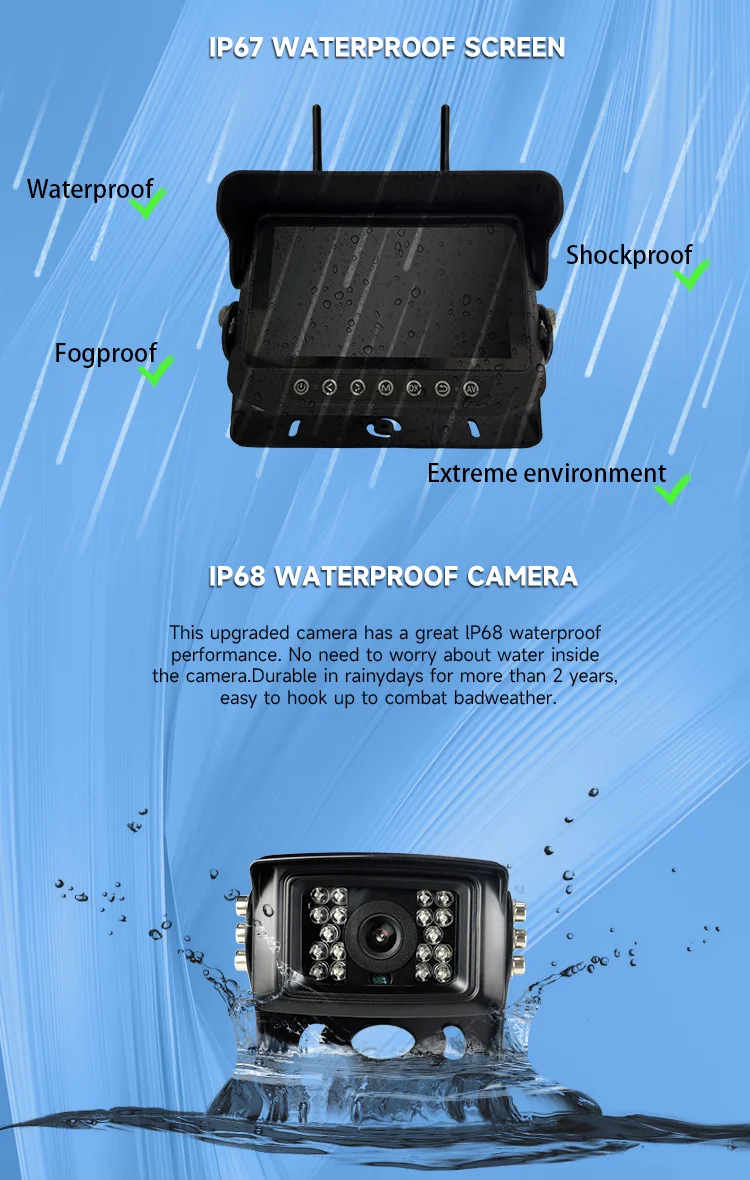

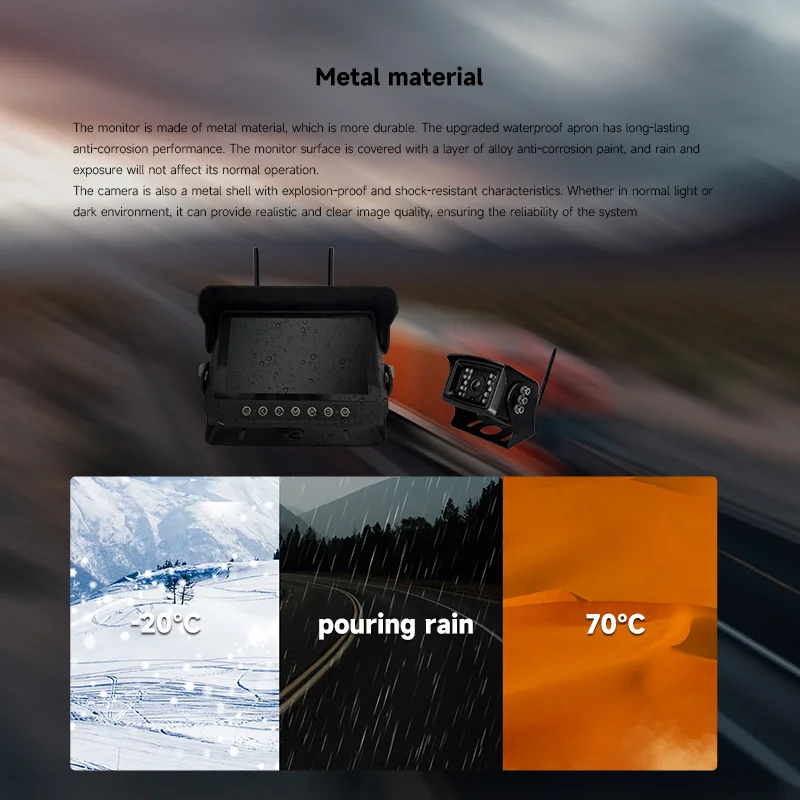

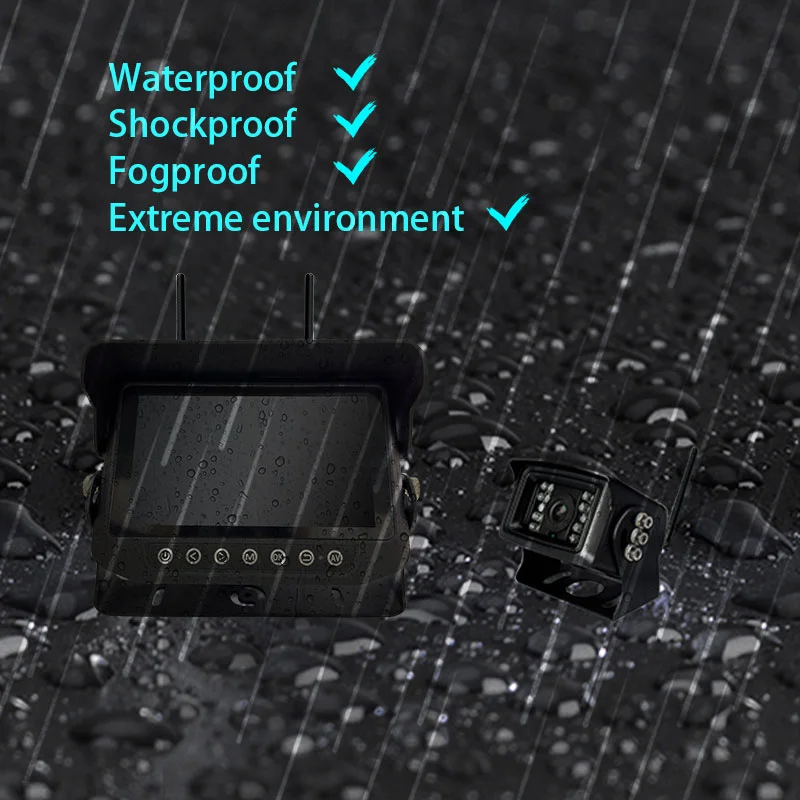

WEATHERPROOF & DURABLE – BUILT TO ENDURE: Rugged IP67 waterproof monitor design withstands rain, snow, and heat. Shockproof aluminum alloy construction ensures durability for harsh environments, making it the ultimate companion for RV adventures.
Industry-specific attributes
| Car Fitment | ABG (Allg Baumasch Gesellsch) |
| Function | Waterproof, NIGHT VIEW, Split Screen, Parking Line, quad view |
| Voltage | 12-36V |
Other attributes
| Type | Parking Sensor, Parking Sensor System, Monitor |
| Position | Combination Set |
| Screen Size | 7.0inch |
| Warranty | 12 Months |
| Place of Origin | Guangdong, China |
| Brand Name | HOPE |
| Model Number | HP-U1 |
| Waterproof | IP 68 |
| Video resolution | 1280*720 (MAX) |
| Screen size | 7 Inch |
| AI alarm (people/vehicles) | screen icon, built-in voice, external sound and light |
| Storage | Micro SD card, CLASS10 U1, maximum support 512G |
| Video | 4 video input |
| Display | 4 segmentation display |
| System | NTSC/PAL |
| Button function | menu button |
| Operating temperature | -30℃ to+80℃ |
